Ultra-compact 1.54" E-Ink display — perfect for small product shelving
4-color display (BWRY) for vivid promotional pricing and flash sales
2.4GHz wireless connectivity — centralized management, instant updates
5+ year battery life — zero maintenance over the label lifetime
IP54 rated for dust and moisture resistance in retail environments
Ultra-low power consumption — update only when needed
ESL ALL.png compatible with all major ESL management platforms
| Display Technology | E-Ink (Electronic Paper) |
| Screen Size | 1.54" |
| 分辨率 | 200×200 pixels |
| Display Colors | Black / White / Red / Yellow (4-color) |
| 通信方式 | 2.4GHz SDR Wireless |
| Gateway Required | Yes — CEDAR V3 AP |
| 电池续航 | 5+ years (typical usage) |
| Update Speed | < 0.3s per tag |
| 工作温度 | -10°C to +60°C |
| Low-Temp Version | Available (-25°C to +50°C) |
| 防护等级 | IP54 (Dust & Splash Resistant) |
| 材质 | ABS plastic housing |
| 重量 | ~26g |
* 规格如有变更，恕不另行通知。请联系我们获取最新资料。

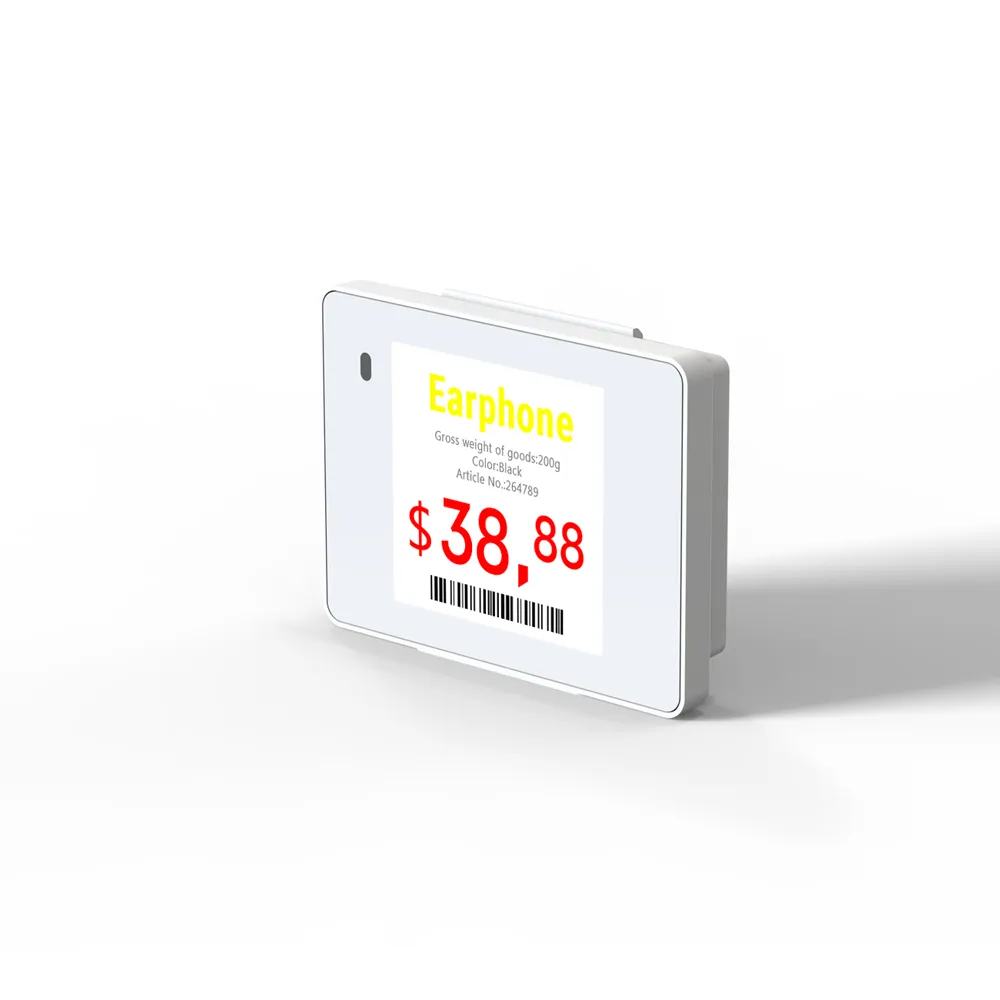

SLIM-154BWRY Electronic Shelf Label — 1.54" E-Ink electronic shelf label (ESL) featuring Black / White / Red / Yellow (4-color) 4-color display. Powered by 2.4GHz SDR (SLIM Series). CEDAR V3 AP (required). Battery life up to 5+ years. IP54 rated for dust and splash resistance. Operating temperature: -10°C to +60°C. Ideal for Small retail items, accessories, cosmetics, pharmacy labels.
Tocvue ESL labels use ultra-low power E-Ink (electronic paper) technology — the same display used in Kindle e-readers. The screen only draws power when the content changes, resulting in a 5+ year battery life. No backlight needed — paper-like readability from any angle, even in direct sunlight.
The SLIM-154BWRY is available in two connectivity versions: SLIM Series (2.4GHz) requiring the CEDAR V3 AP gateway for centralized management of hundreds of tags, and BLE Series (Bluetooth 5.0) requiring no gateway — controlled directly from a smartphone app. Choose the version that best matches your store size and deployment requirements.
拓纬工厂直供——自2016年起的专业ESL制造商。联系我们获取批发报价、样品和OEM定制。
SLIM-154BWRY是拓纬科技推出的1.54英寸2.4GHz电子价签（ESL），专为连锁零售商的小件商品定价而设计。属于2.4GHz SLIM系列，通过CEDAR V3 AP网关实现跨门店集中管理。200×200像素的E-Ink墨水屏支持4种颜色（黑/白/红/黄），非常适合配件、化妆品和药店商品。5年以上电池续航，IP65防尘防水，适用于高要求零售环境。
SLIM-154BWRY operates on the 2.4GHz SDR platform, connecting through the CEDAR V3 AP gateway for centralized price management across hundreds or thousands of tags. Ideal for chain stores and large-format retail.
1.54-inch inch E-Ink screen supports Black, White, Red, and Yellow — making regular prices and promotional offers clearly distinguishable at a glance.
Using CR2450 batteries, SLIM-154BWRY delivers over 5 years of operation with user-replaceable batteries. No need to replace the entire unit when the battery runs low.
Through the CEDAR V3 gateway and cloud platform, manage prices across all store locations from a single dashboard. Update regional pricing, run chain-wide promotions, and maintain 100% price accuracy effortlessly.
IP65防护等级，防尘防水。低温型号（SLIM-213BW-LOW）可在-25°C环境下运行，适用于冷冻柜和冷链应用。专为超市和大卖场环境的需求而设计。
Contact us for wholesale pricing. MOQ flexible. Samples available.
